35000LM High Bay UFO Lights

Brand Name : LEDSION

Model Number : LS7EHB240WBCPD1

Certification : UL, DLC

Place of Origin : China

MOQ : 2pcs

Price : Negotiation

Payment Terms : T/T, CC, Check, PP, Western Union

Supply Ability : 1000pcs/week

Delivery Time : 1-2days

Packaging Details : Carton package, 2pcs/ctn, 17*17*18.5inch, 25.6lbs, 1636pcs/40HQ , 1396Ppcs/40GP, 674pcs/20GP

Product Name : 7G 240W LED UFO High Bay light

Model No. : LS7EHB240WBCPD1

Lumen Efficiency : 130-146lm/W

Lumens output : 33000-35000LM

Input Voltage : 100-277Vac 50/60Hz

LED Chips : SMD 2835

LED Qty : 680 PCS

Viewing Angle : 110 degree

CRI : >80

Working Temperature : -30-+45℃

Storage Temperature : -40℃ TO 80℃

Power Factor : >0.9

IP Rating : WET (IP65)

Color : White / Black

Warranty : 5 Years

Certificate : UL, DLC

Contact Now

7G White 240W LED UFO Highbay light 130lm/W 5000K 100-277Vac 1-10V Dim



Main Features:

  • UL DLC certificate
  • Fins design, advective holes and grooves in each fin, good for heat dissipation;
  • The wide input voltage range AC100-277V (1-10V dimming);
  • Professional light distribution technique, high light reflectivity reflectors;
  • Output constant current lever can be adjusted through output cable with 1-10V PWM Resistance three in one dimming.


Applications:

1. Food Warehouse, factory and workshops;
2. Highway toll station and gas station;
3. Exhibition hall;Gymnasium and supermarkets, etc.


Basic Specification:

Product Specifications

Product name LED High Bay Light
Part No LS7EHB240WBCPD1
Dimension

Ф350x210 mm or Ф350x235 mm


Technical Characteristic

Color temperature 4000K 5000K 5700K
CRI >80Ra
Cover Clear PC
Lumen

33000-35000LM
Viewing Angle 110D
Input Power 240W
Input Voltage 100-277Vac 50/60Hz
Driver Brand

China Brand Driver

(1-10V/PWM/Resistance three in one dimming )
Optional Accessory Motion Sensor / Surge-Protective Device
PF >0.9
Waterproof Rating WET Location (IP65)


Materials

LED Type SMD 2835
LED QTY 680 PCS
Housing Aluminum
Housing color Any color(default black)
Cover PC cover


Others

Operating Temperature -40℃ TO 50℃
Operating Humidity 10％-90％ RH
Storage Temperature -40℃ TO 80℃
Storage Humidity 10％-95％
Application Indoor
Safety Certification UL, DLC
Warranty Time 5 Years



35000LM High Bay UFO Lights


35000LM High Bay UFO Lights

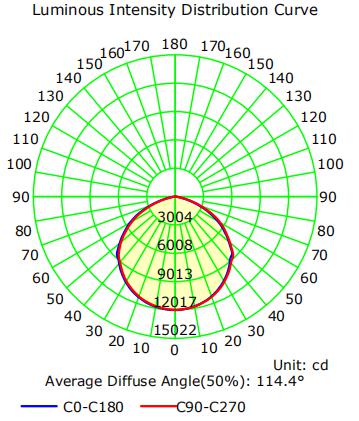

Photometrics:



35000LM High Bay UFO Lights

35000LM High Bay UFO Lights

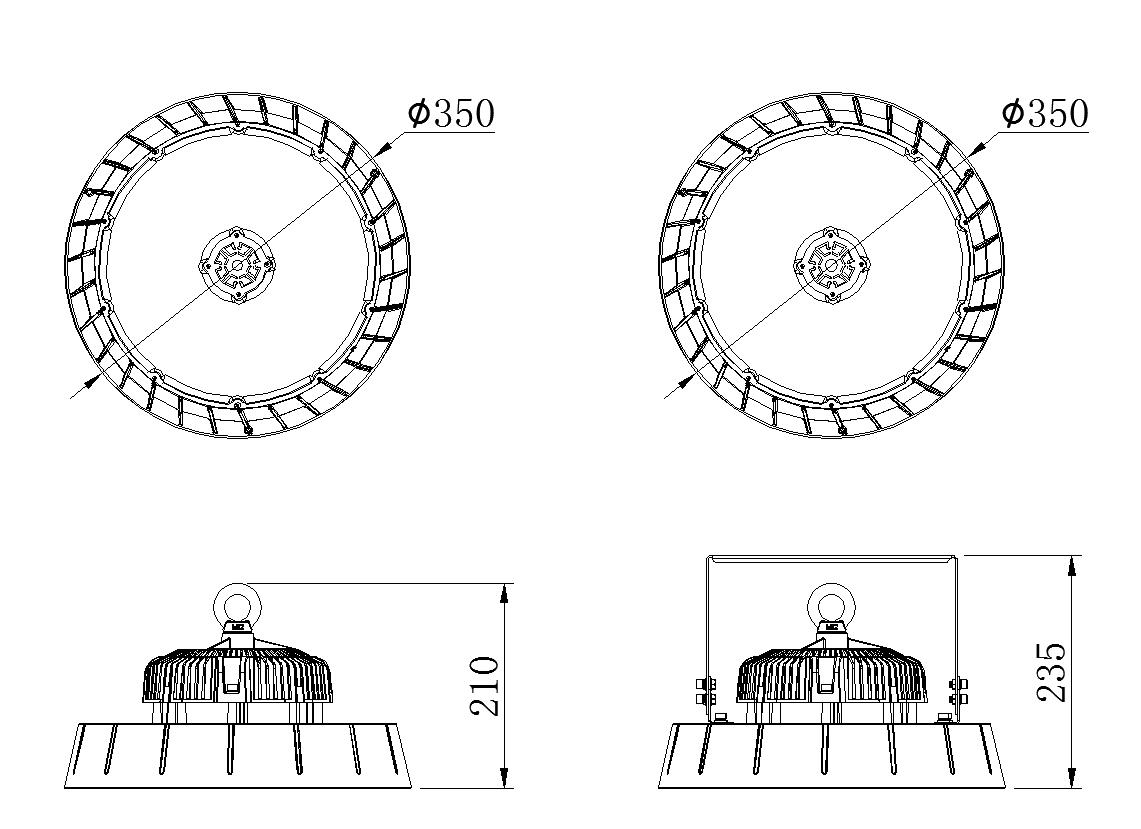

Product Dimension(mm):

Item  With open hook with U bracket
240W Φ350×210mm Φ350×235mm

35000LM High Bay UFO Lights

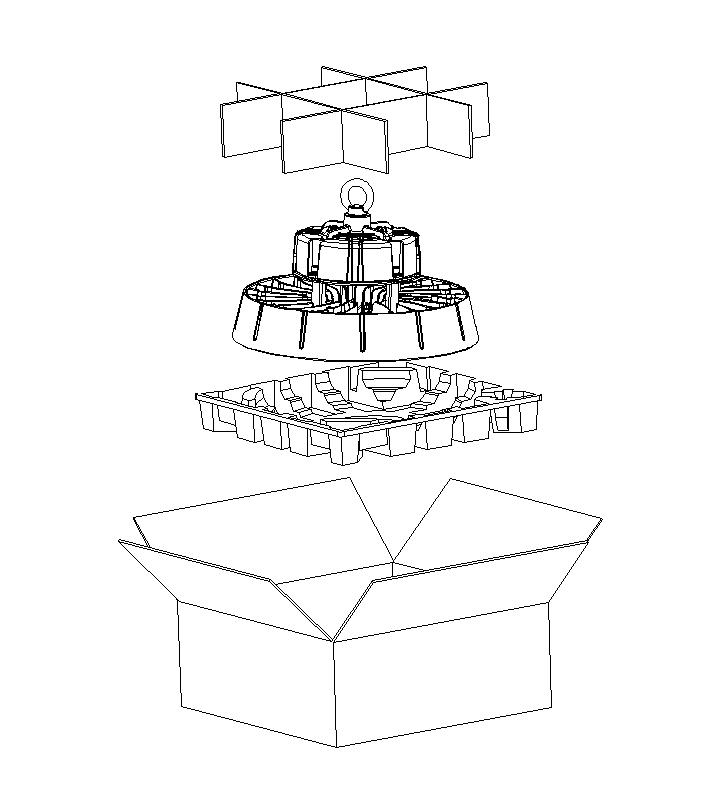

Package:


  Size Qty / Carton Gross Weight / Carton
inner box 400*400*210mm 1 PC 5.4 KG
outer box 425*425*460mm 2 PC 11.6 KG


35000LM High Bay UFO Lights

FAQ:


Q1: Are you a factory or trading company? Where is your company located?
A: We are a factory 100%,  Our company is located in Shenzhen, GD, China, faactory located in Jiangmen,GD,China

Q2: What is the warranty for our lamps?
A: We have 5 years warranty for our lamps

Q3: How do you ensure the quality
A: We are working with QC processes to guaranty the quality:

Q4: How to do if any quality problems from our reason in the warranty time?
A: First, take pictures or videos as proof and send to us, then we will replace new one for free.

Q5: OEM OR ODM accepted?
A: Yes, we can do OEM & ODM, logo on the light or package both is available.

Q6: Can we get support if we have our own market position?
A: Please inform us your detailed market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.

Q7: What's your MOQ? Can I order small quantity for testing at first order?
A: MOQ 1pcs, we accept small order for building mutual trust and long-term business relationship.


Warehouse introduction:
Ledsion Ligting has its own warehouse in Dallas, TX 75247, USA.  Warehouse area up to 50,000 square feet. We have professional person responsible for warehouse operation. Professional after-sales service, and professional logistic team, can send out all the goods in the same day customer ordered.
35000LM High Bay UFO Lights
